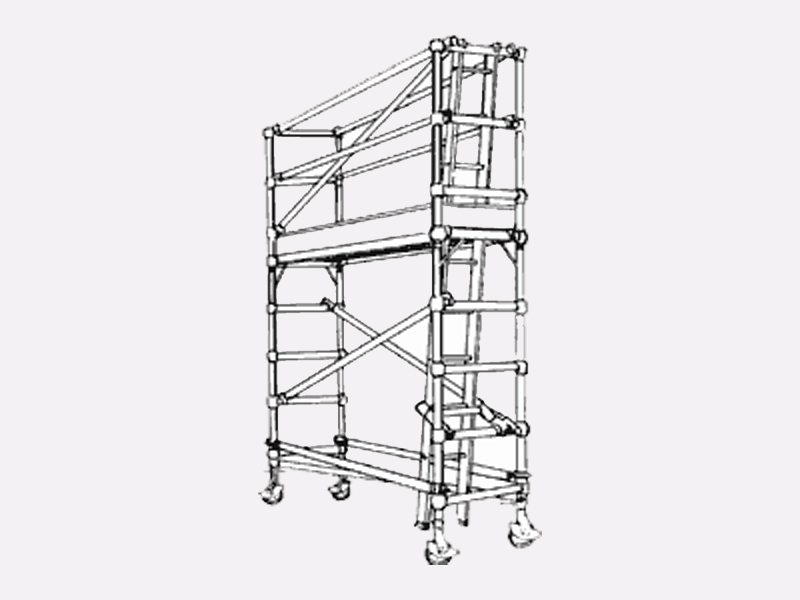

Single Width

Single width towers are ideal where a smaller work platform is required due to work type or access. They are well suited to inside rooms with restricted access.

Nominal lengths are 1.8, 2.4 and 3.1 metres. The frames are 740mm wide. The system is approved to be erected to a maximum platform height of 30 metres.

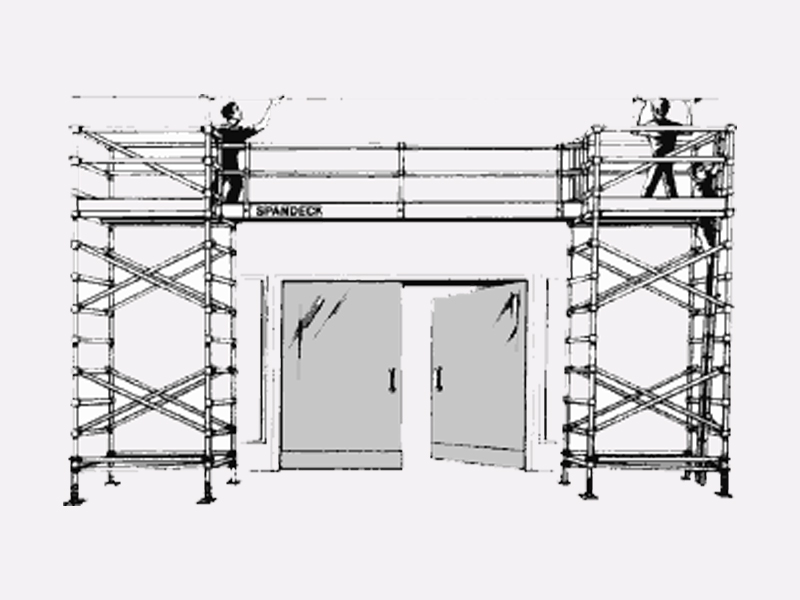

Bridging Unit

Bridging units are used for bridging over walkways and obstructions, as catwalks, in roofs or for overhead maintenance.

Bridging units are 620mm wide and range in length from 3.6 metres to 7.2 metres. They are ideal for spanning over doorways and swimming pools. A number of units side by side provide a large, flat work area.

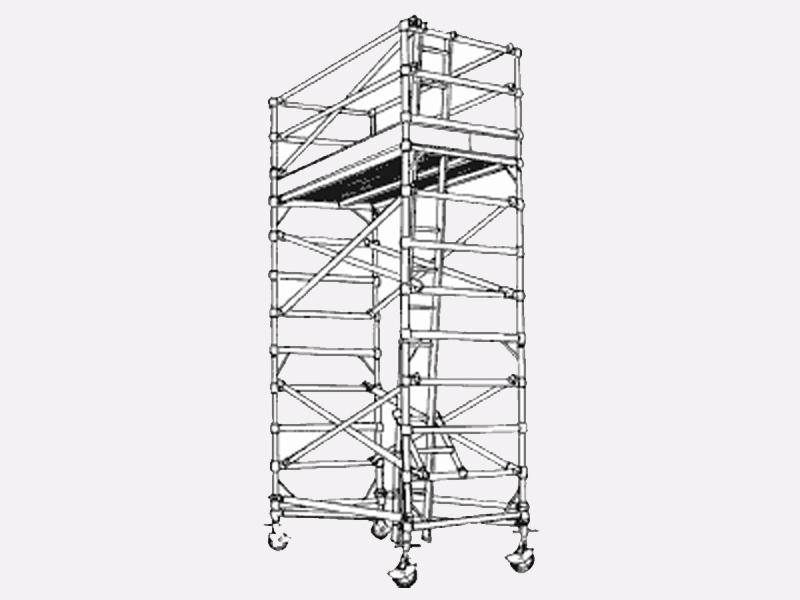

Double Width

Double width towers are ideal for any external or internal building maintenance work. They are the most common scaffold tower and may be used alone or linked together to access a large area. Lengths are 1.8, 2.4 and 3.1 metres. The frames are 1.35 metres wide. The system is approved to be erected to a maximum platform height of 30 metres.

Click here for assembly instructions

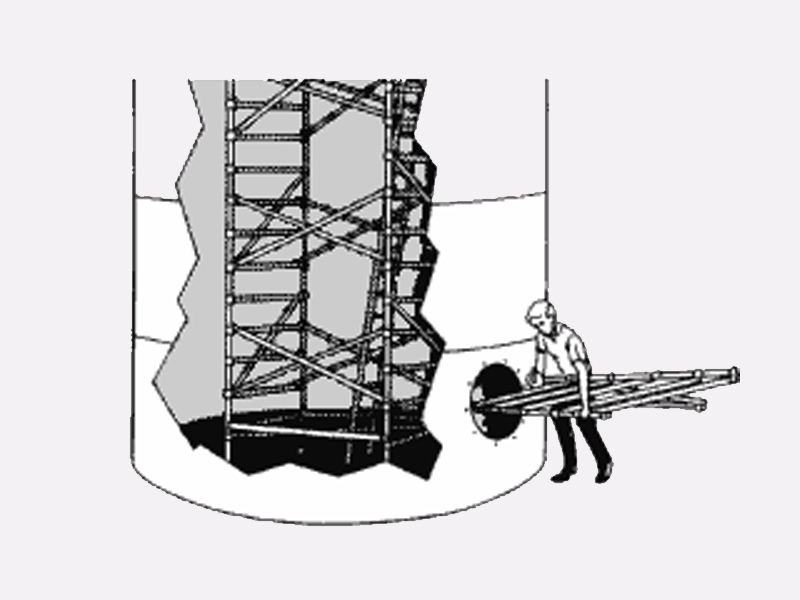

Fold-A-Frame

Fold-A-Frame scaffolds have the ability to fold and fit through a a man hole or a hole of similar size. They are ideal for boiler and tank maintenance.

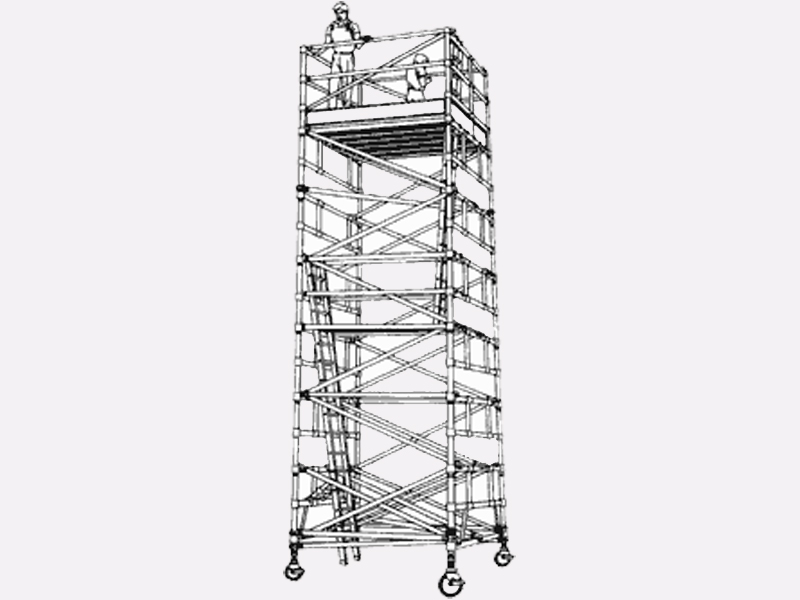

Square Towers

Square towers are fully mobile and free standing. They are ideal for overhead work where a large working platform is required.

Frame sizes are 1.8, 2.4 or 3.1 metres. By combining them with different length braces and platforms, combinations from 1.8 x 1.8 to 3.1 x 3.1 can be achieved. They are ideal for ceiling fixers and painters.

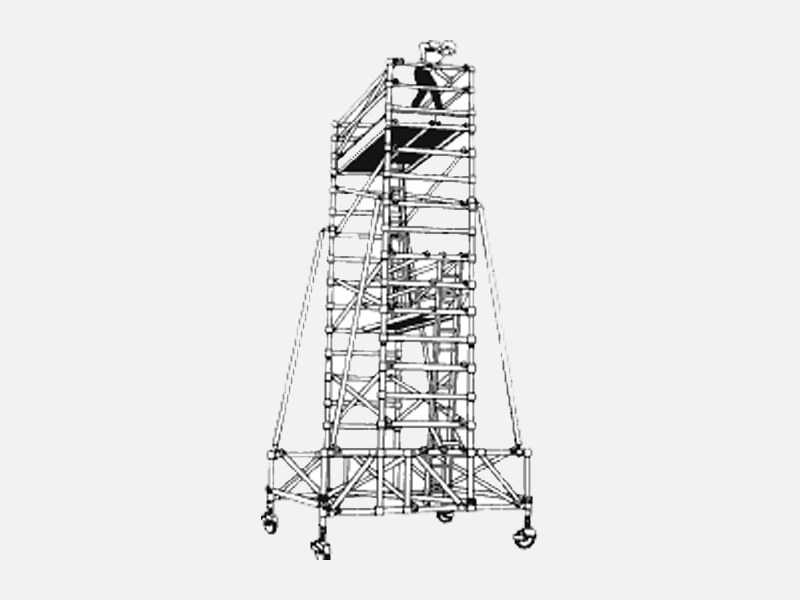

Truss Base

Truss-base towers have an unique base that allows for various platform height positions without the costs of a large platform. Double Width frames are added to the Truss Base frames to give a mobile tower that achieves a 3:1 height to base ratio while remaining fully mobile to a maximum height of 9 metres.
